How to set up and pair ScreenManager Android TV box with a Digital Signage player

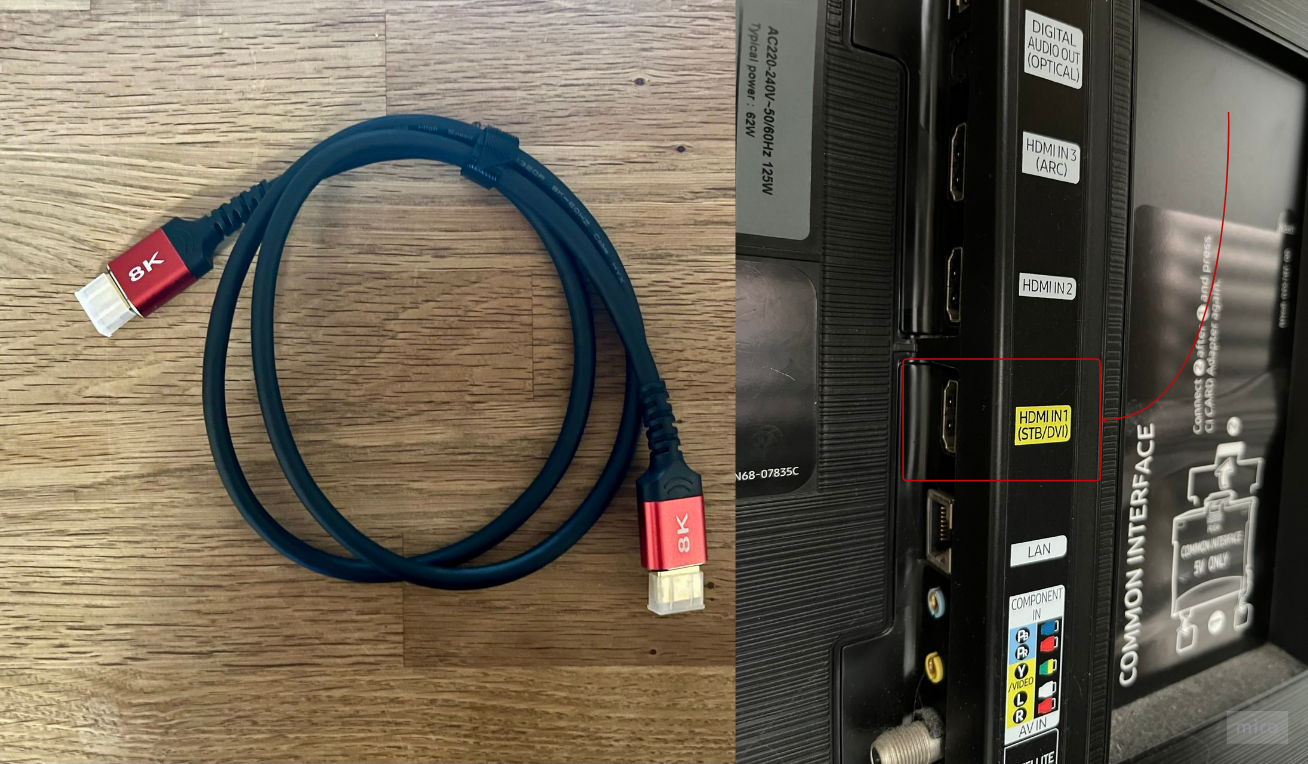

Use the HDMI cable included in the box to connect the device to your TV using HDMI IN1 (STB/DVI) socket.

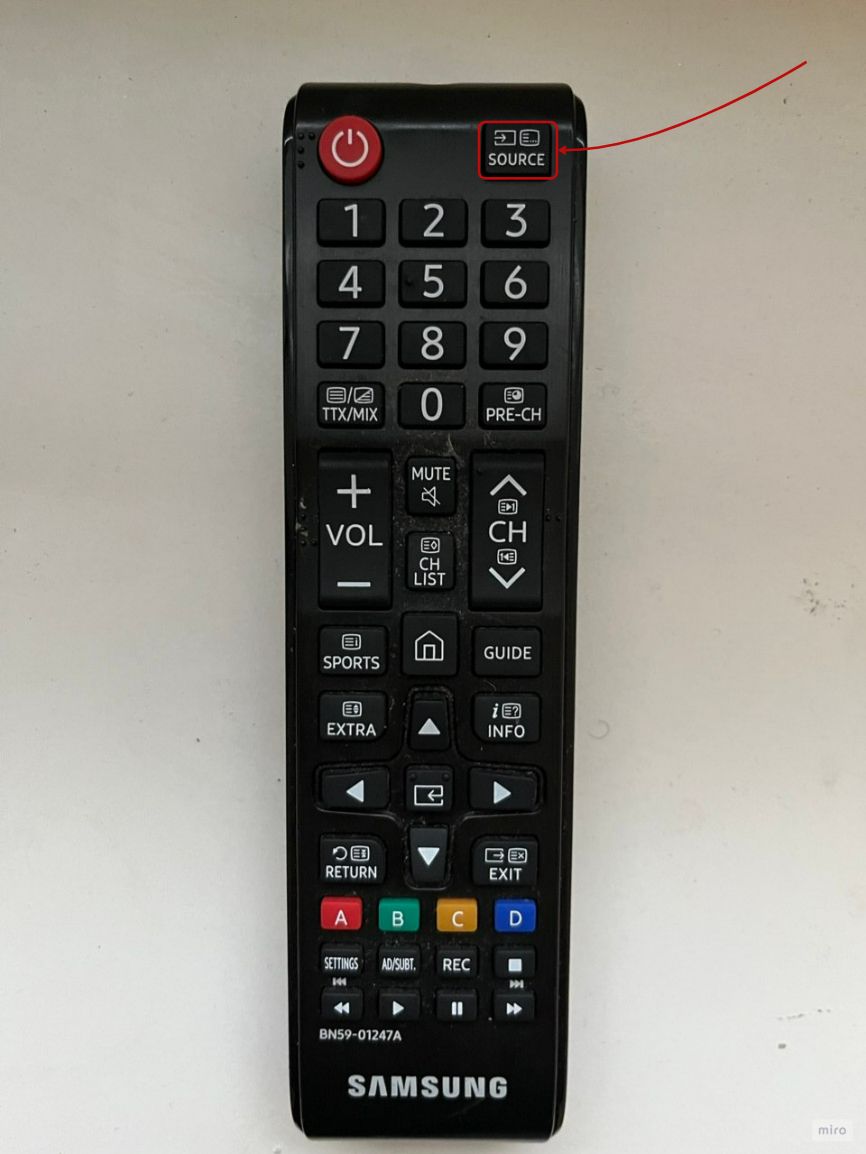

Turn on your TV and click on “Source” button (see example of how the button may look like below).

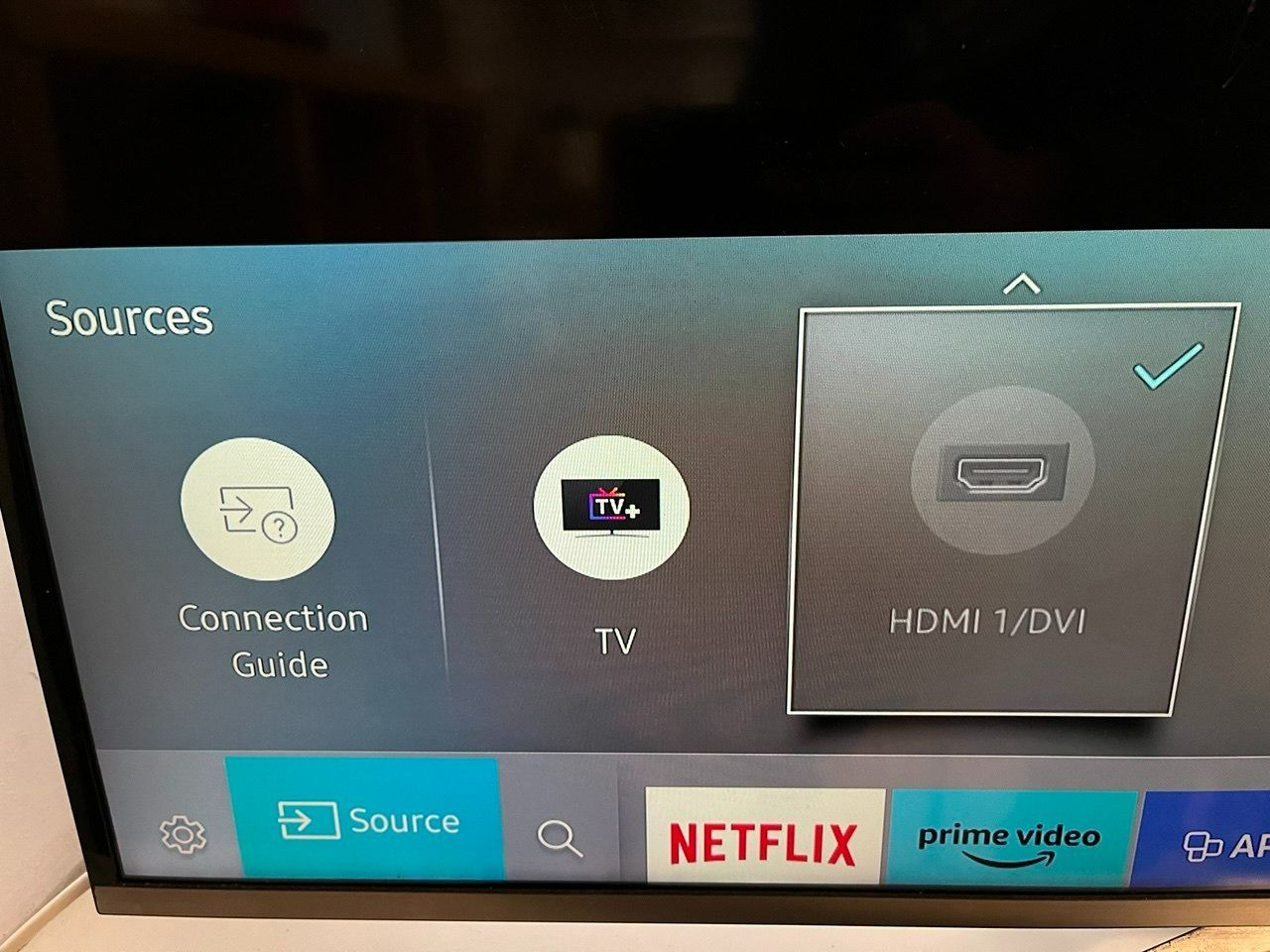

In a new menu choose HDMI 1/DVI and confirm choice.

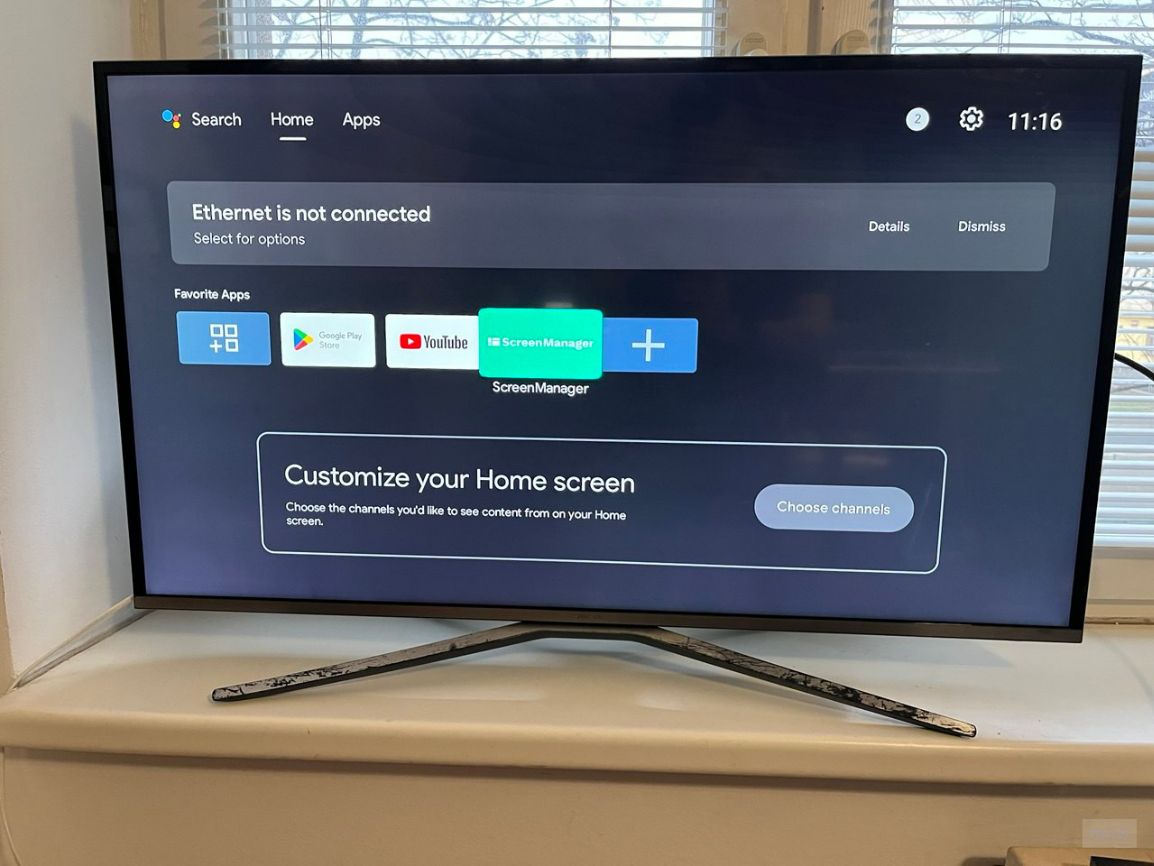

After that TV will connect to the box and you will see the Main Menu of the ScreenManager TV box.

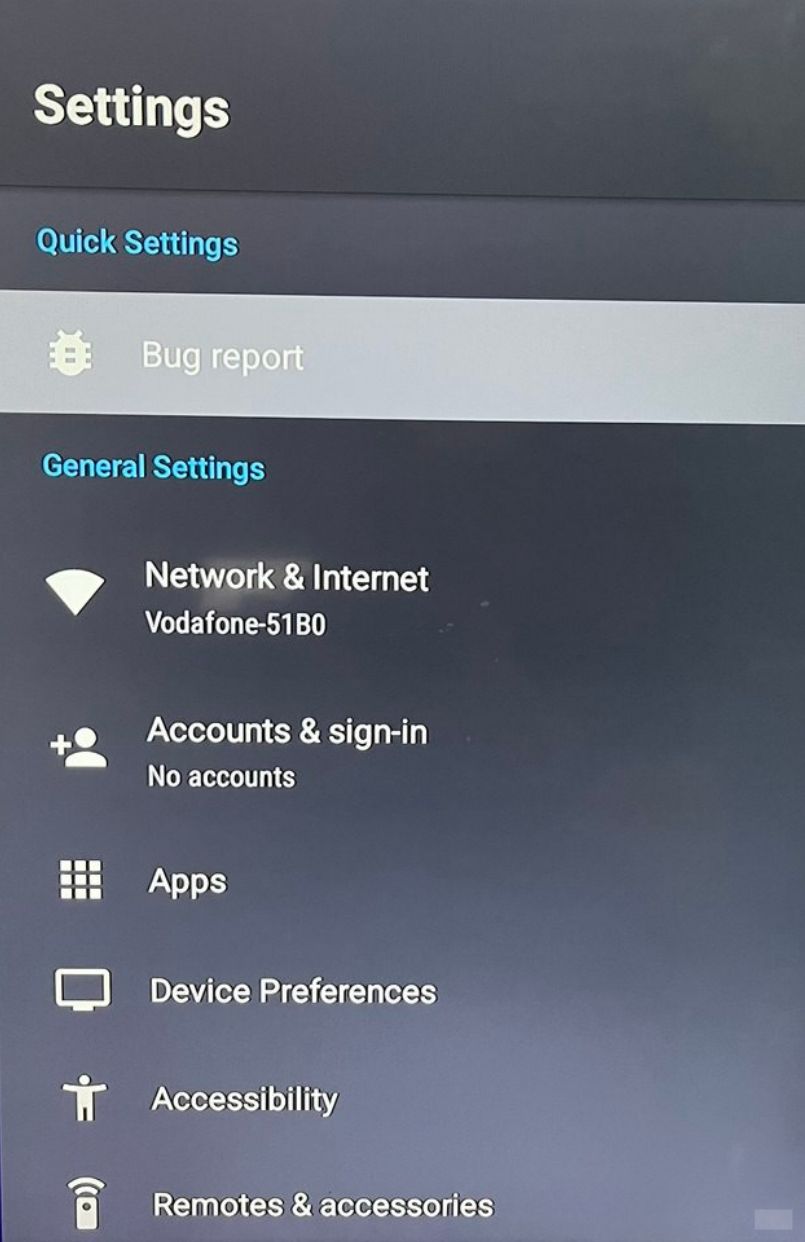

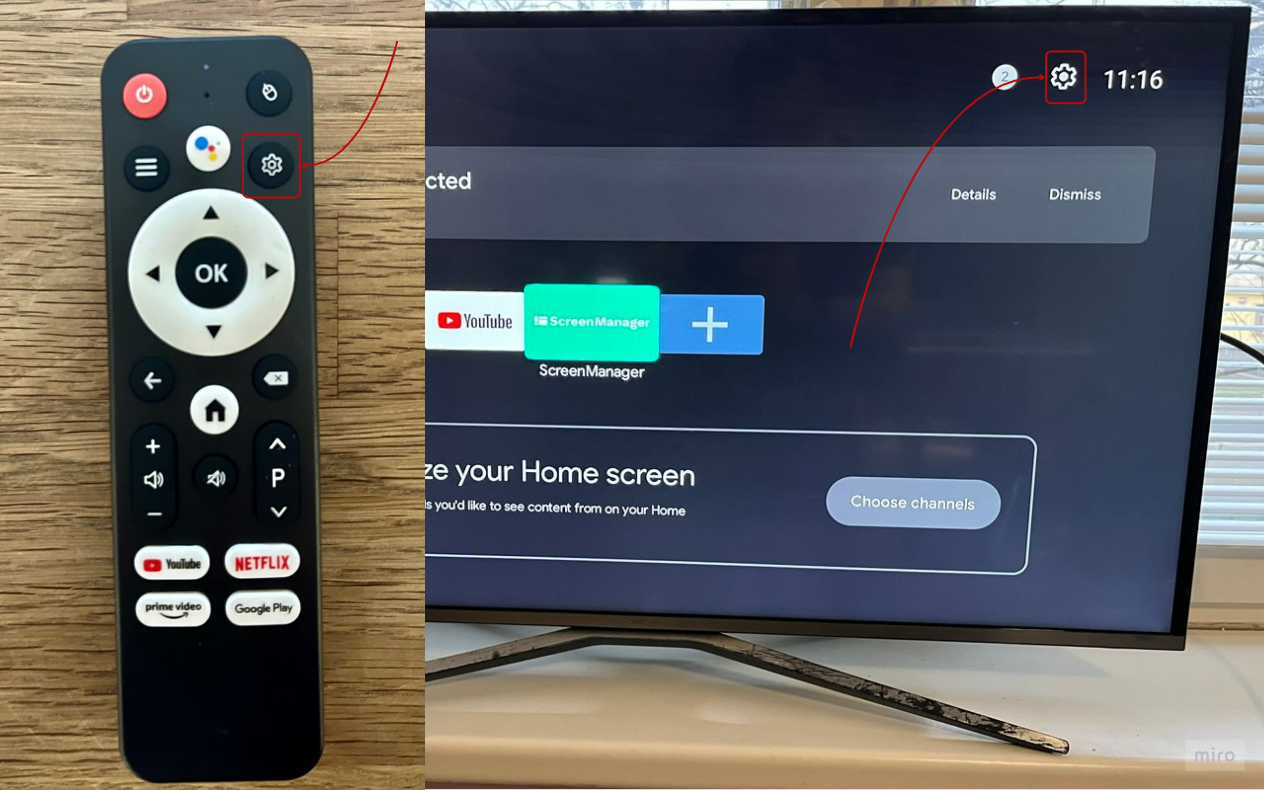

Press the settings button on the remote (included with the TV box) or on the "Settings" button on your TV and go to "Network & Internet” settings.

You may need to pair the Android box remote first.

Connect the box to the internet either via Ethernet cable or WiFi.

• Ethernet: plug in Ethernet cable from the TV box to your modem or router.
• WiFi: choose your WiFi network and input the password.

Open the ScreenManager App on your Android TV box.

The App is preinstalled and you do not have to download it from Google Play.

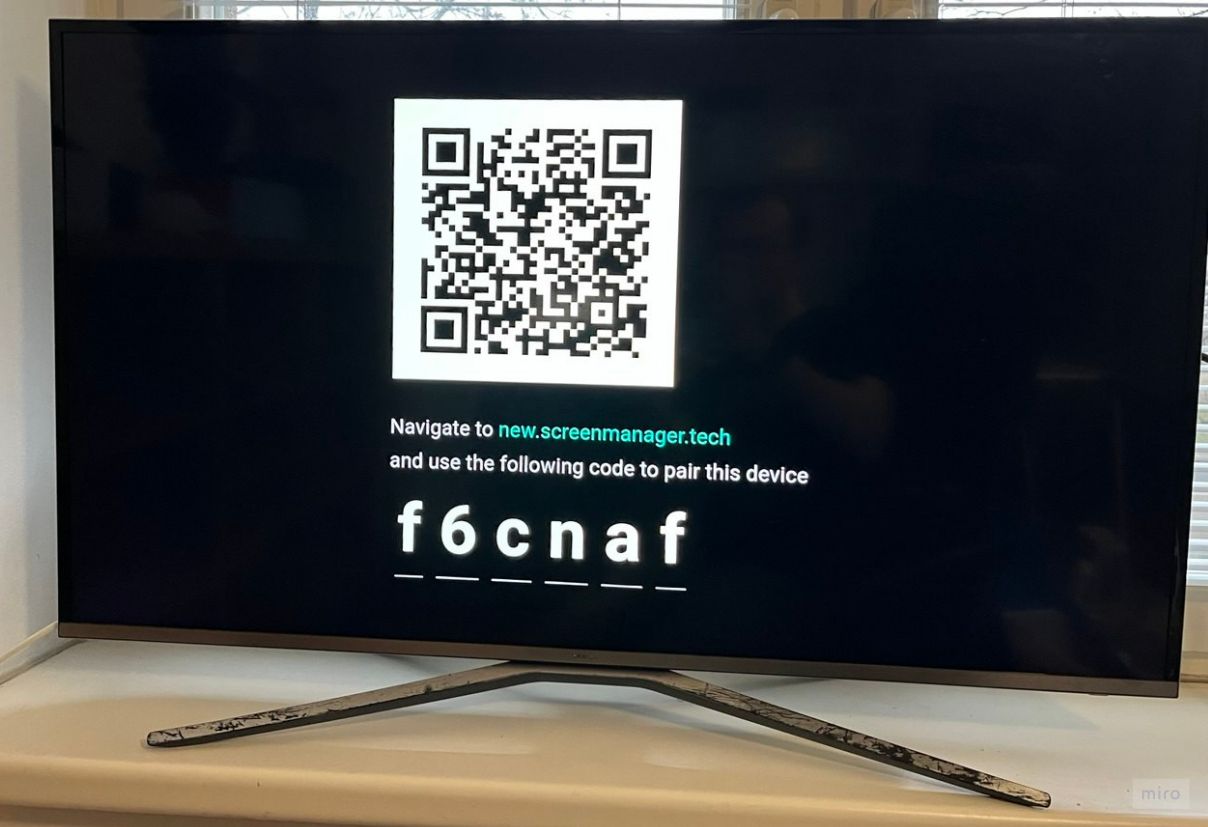

You'll see a pairing code displayed on the screen.

On your computer or smartphone, navigate to https://client.screenmanager.tech/ and log into your account.

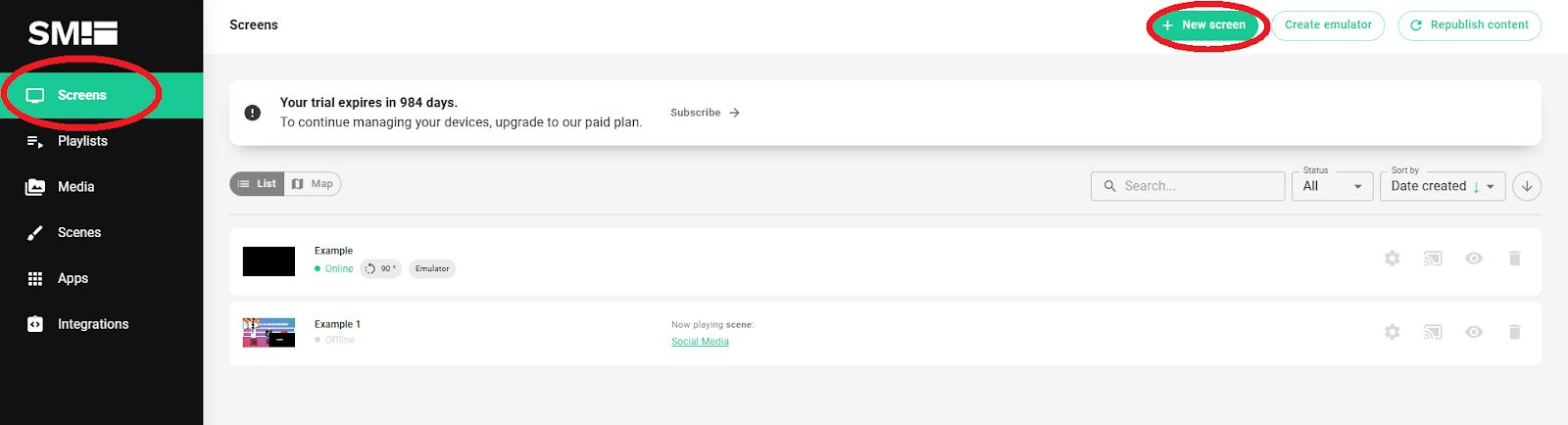

Go to the "Screens" section and click on the "New Screen" button.

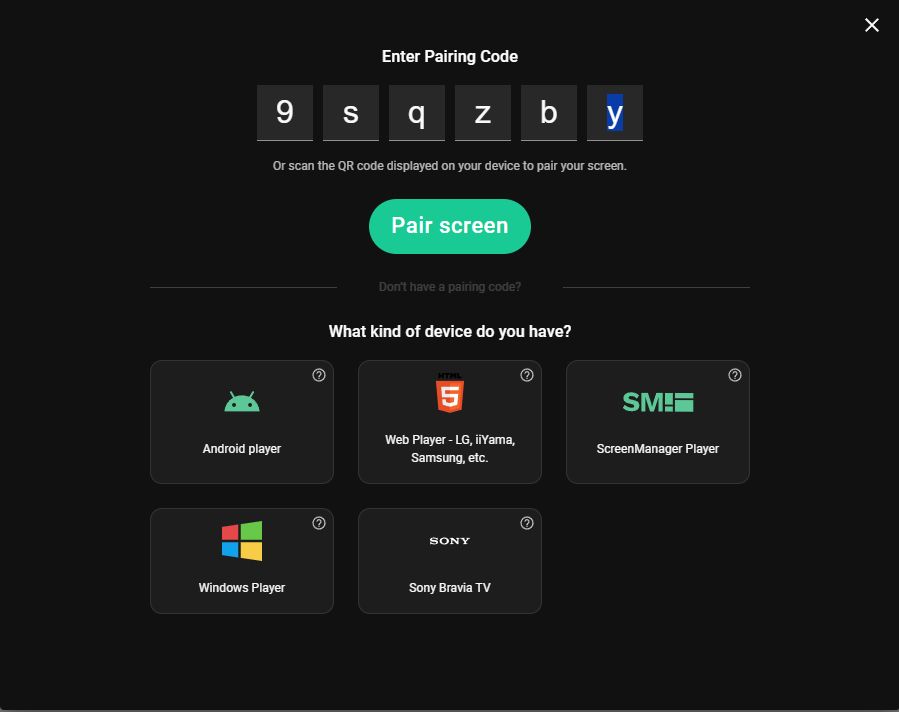

Enter the pairing code you see on your TV and click "Pair screen".

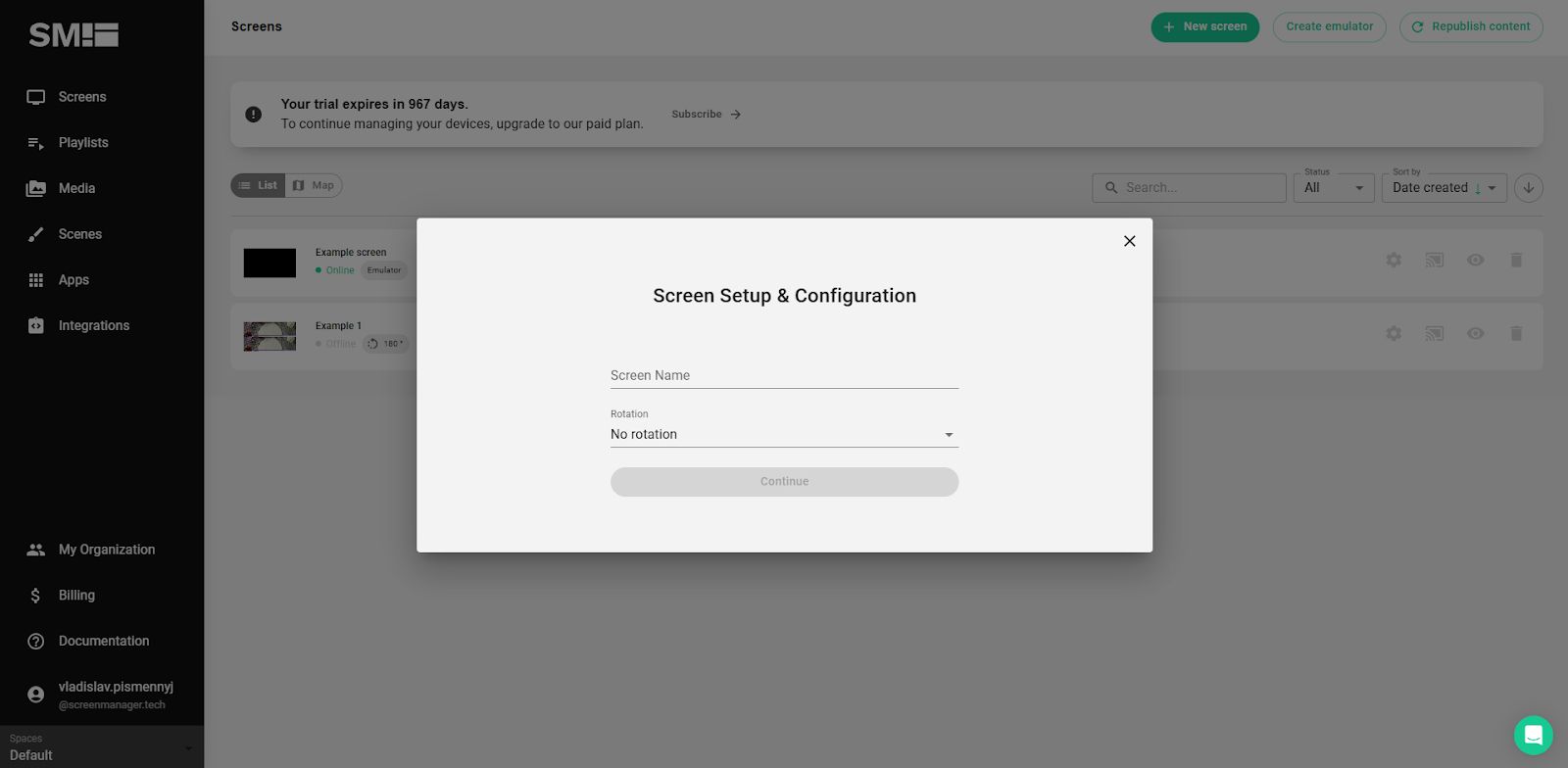

Name your screen and choose its rotation.

That's it! You are ready to start presenting content on your screen.

With your device paired and ready to go, you can start presenting your content.

Navigate to Media page and upload images, videos or PDF presentations. To create more complex visuals or use third-party integrations such as Instagram or RSS feed, navigate to Scenes.

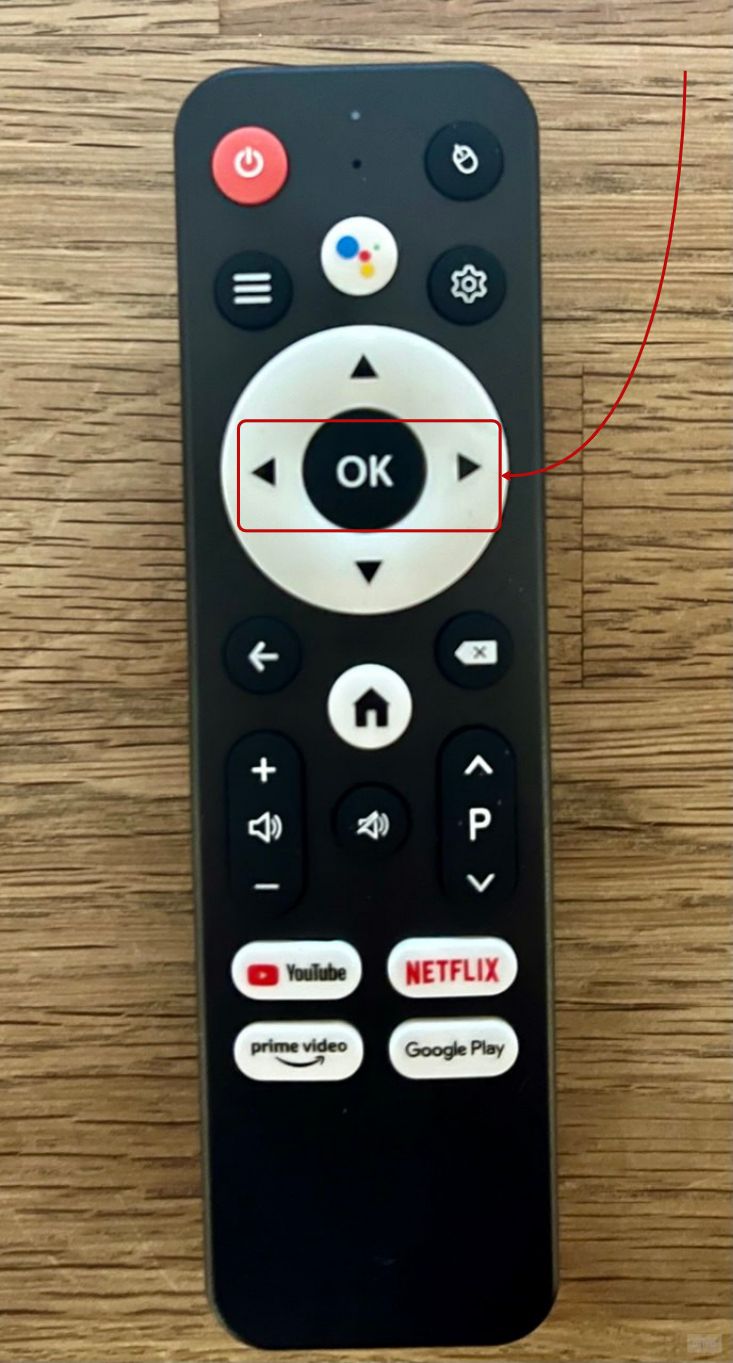

Place the remote near the box. Press and hold [LEFT] and [RIGHT] buttons on the remote control at the same time for ~10 seconds.

After you see a constantly flashing red light on the remote control, release it to automatically enter pairing mode.

Press any button on the remote control to reconnect.
